Product Features

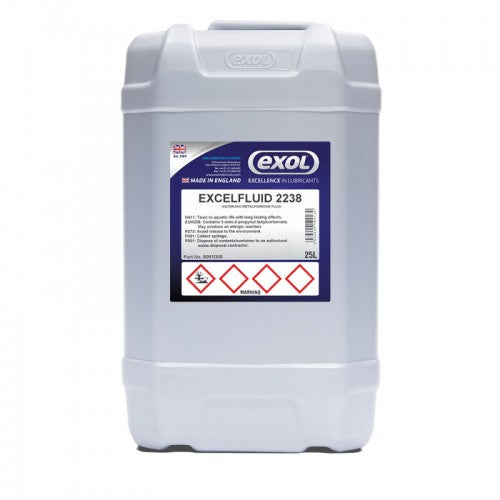

The performance additives incorporated into the fluid provide outstanding surface finish on all types of aluminium and associated alloys as well as steels. Excelfluid 2238 has been proven to have outstanding tool life performance when used in the machining of titanium.
Features & Benefits:
- Excellent high shear performance characteristics
- Loaded with EP performance
- Secondary amine free
- Used in all difficult applications
- Low foaming tendency
- Multi-metal compatible
- Outstanding levels of boundary lubrication
Typical Test Data:
Appearance of Concentrate | Amber Liquid |
Odour | Sweet |
Emulsion Appearance | Milky White |
Specific Gravity | 1.022 |
pH @ 5% | 9.3 |
IP287 Breakpoint, % | 2.0 |
De-foam in 50ppm water | Nil after 10 seconds. |
Reichert Performance @ 10% | Noise Reduction 3.0m |
Load Capacity 3.64Kg/mm² | |
Refractometer Correction Factor | 1.1 |
Refractometer Dilutions:
General Machining 5-6%
Gear Cutting 6%
Deep Hole Drilling 7%
Broaching 9%
Dilutions can be increased further to gain greater performance.
